Grand Canyon HCSPK High Capacity Safety Pilot Kit provides a premium high-capacity safety pilot control for your vented gas appliance. The reliable design and heavy-duty construction ensure a long-lasting, durable product that includes the necessary components to enhance your fire feature.

This unit requires the turn of a knob to light your main burner and adjust your flame height. This kit will regulate the gas flow of your appliance which has a maximum BTU rating of 142,000.

The high-capacity safety pilot offers natural gas or propane options and can be used with all Grand Canyon 3 Burner systems greater than 30 inches and all Jumbo Burners.

Add 6 inches to the front width for proper centering of the appliance.

Please Note: This kit operates with a manual operating system and you can use GCRK (On/Off) remote and GCWS (On/Off) Wall Switch (Not included - Sold separately).

Features

• Fuel Type - Natural Gas or Propane
• Safety Pilot Kit - Safely light your burner and control your flame height with the turn of a knob
• BTU - 142,000 max (High Capacity)
• Burner Compatibility - Grand Canyon 3 Burner systems greater than 30-Inches and ALL Jumbo Burners

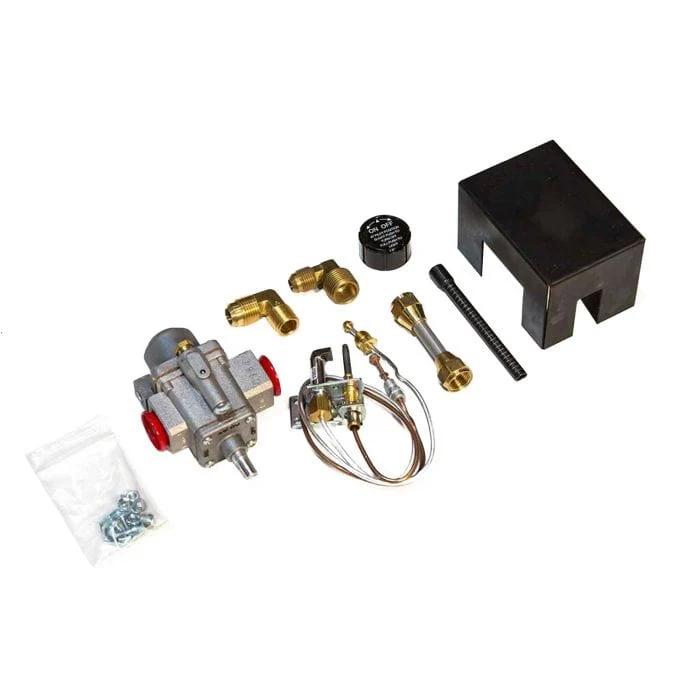

• Includes: Valve, Pilot Assembly/Bracket, Black Knob, Heat Shield, Swivel Connector, Various Fittings, and Screws (Vermiculite Lp Only).

Specifications
Manufacturer	SKU Number	Max Inlet	Valve Temp	BTU	For Use With (Burner Model)
Grand Canyon	HCSPK-N	14” W.C.	250°	Up to 124K BTU (NG)	2-Burner / Glass / Kiva - 18" to 42", 3-Burner - 18" to 30" and Jumbo / Jumbo Slimline  - 24" - 30" (NG)
Grand Canyon	HCSPK-LP	14” W.C.	250°	Up to 200K BTU (LP)	2-Burner / Glass / Kiva - 18" to 60", 3-Burner - 18" to 30", and Jumbo / Jumbo Slimline - 24"- 48"(LP)


Downloads

Vented Control Valve Features and Breakdown

Grand Canyon Indoor Catalog
