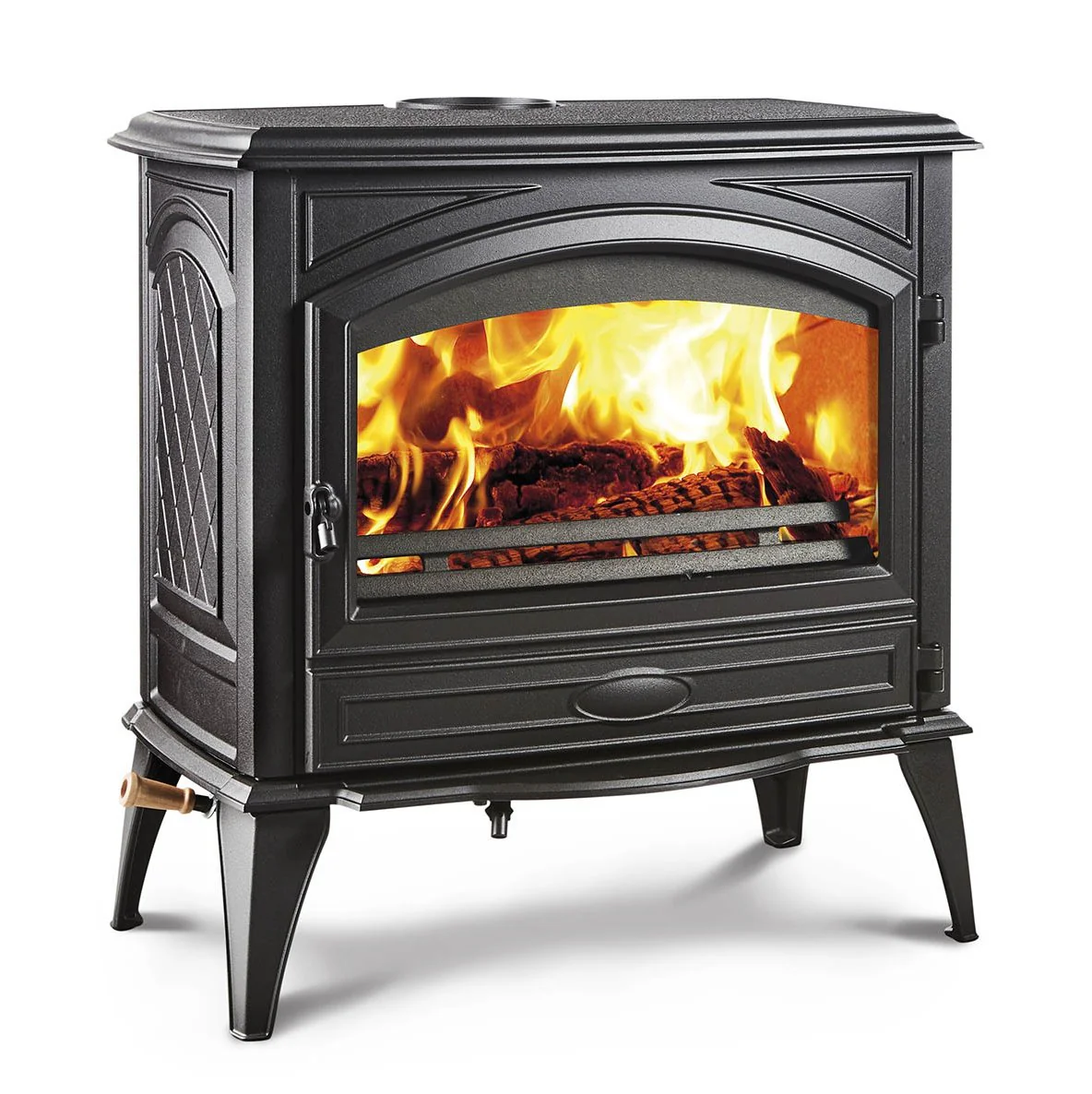

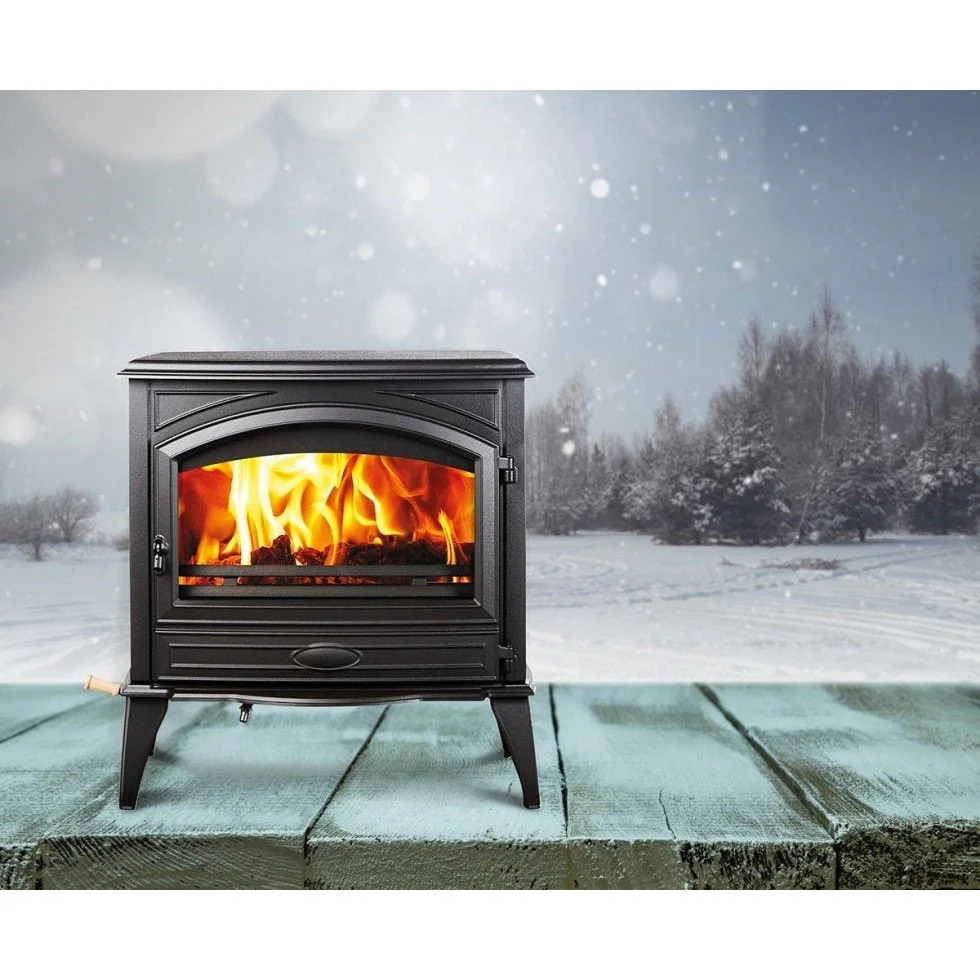

The Lynwood W76 is a welcome addition for wood burners everywhere, and is what a wood stove should be: efficient, low emissions, and provides great flames with a maximum viewing area.

Versatile, the Lynwood W76 wood stove adapts to any room and will create a cozy atmosphere in any space.

EPA 2020 certified, the Lynwood W76 wood burning stove brings warmth without compromising on air quality.

Product Features

• EPA Certified
• 78% Maximum Efficiency
• Non Catalytic
• Heats up 2000 ft2
• Maximum Log Size – 21”
• 13,784 to 57,674 BTU/hr
• Massive Glass for Fire Viewing

Product Information

Specifications & Dimensions

W-76 Type Solid Fuel Room Heater Type of Combustion Non-catalytic Fuel Type Dry Cordwood (15% moisture) Main Material Cast Iron Firebox Isolation Vermiculite Flue Exit 6” (150 mm) Back to top connector Recommended Heating Area 450 to 2,000 ft.2 (42 to 185 m2) Nominal Firebox Volume 1.55 ft.3 (0.044 m3) Maximum Burn Time 1 14 hours Maximum Heat Output (dry cordwood) 2 57,700 BTU/h (16.91 kW) Overall Heat Output Rate (min. to max.) 2 3 13,784 BTU/h to 57,684 BTU/h (4.04 kW to 16.91 kW) Average Overall Efficiency 3 71% (HHV) 4 76% (LHV) 5 Optimum Efficiency 5 78% Average Particulate Emissions Rate 7  1.81 g/h (EPA/CSA B415.1-10) Average CO5 120 g/h

Product Manuals

User Manual & Spec Sheet

Installation Manual

Spec Sheet



Brochure

Heat Shield Installation
