Empava 12 inch Black Electric Radiant Cooktop EMPV-12REC10
Features
- The USA and Canada ETL-certified radiant electric cooktop by Empava Appliances with a 2-year US-based manufacturer warranty.
- Product dimension 11.33 in W x 20.47 in D x 2.05 in H, cutout dimensions 10.63 in W x 19.69 in D.
- Hardwired- 3 copper wire cables from the home power supply, 220~240 Volts, 40 amps breaker.
- 2 cooking zones include a 7.8-inch 1,800-watt power element for faster boil times.
- Compatible to install above any Empava 24/30-inch under-counter single wall oven.
- Easy-to-clean Vitro ceramic smooth surface glass will provide you with a reliable cooktop for years to come.
- Compatible with aluminum, cast iron, ceramic, copper, earthenware, porcelain, and stainless-steel cookware.
Other Dimensions
| Overall | 2.05'' H X 11.33'' W X 20.47'' D |
| Center Back Burner Diameter | 6.5'' |
| Center Front Burner Diameter | 7.8'' |
| Cutout Width - Side to Side | 10.63'' W |
| Overall Product Weight | 15 lb. |
| Cutout Height - Top to Bottom | 5'' H |
| Cutout Depth - Front to Back | 19.69'' D |
- Besides checking the product measurements, you should also.
- Walk the delivery path: measure doorways, hallways, stairways, and areas where there may be a tight fit to ensure your appliance will fit.
- Check the fuel type: check if your cooktop requires gas or electricity. Depending on the model, electric cooktops require a 30, 40, or 50-amp circuit.

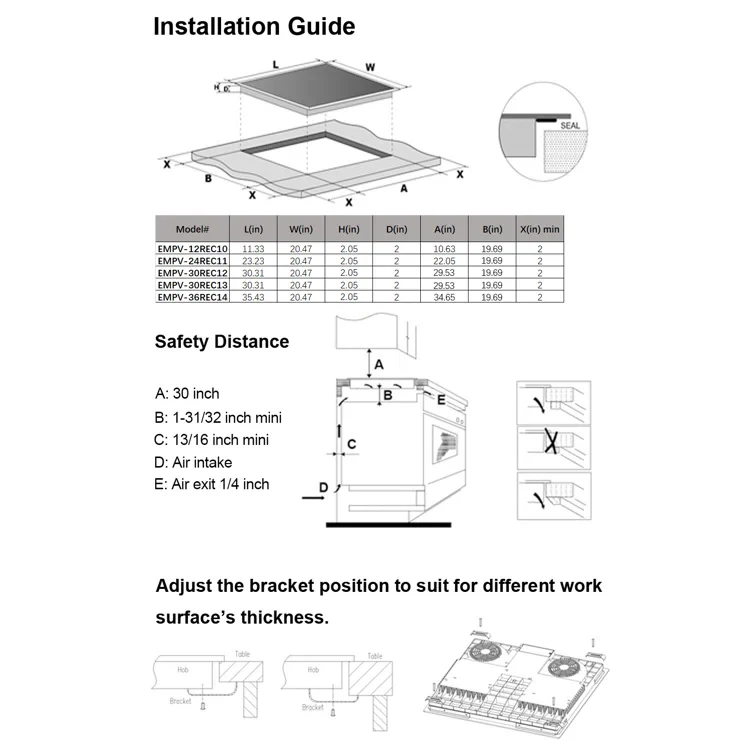

- Measure the cutout space: remove your existing cooktop and measure the cutout opening. Measure the cutout width from side to side, depth from front to back, and distance between the cutout and both the back wall and the front of the countertop.
- Additional considerations; keep in mind that your new cooktop will have a lip that will overlap the cutout by ½-1 inch. You should also subtract any space needed for gas lines, ventilation, or other manufacturer requirements beneath the cooktop. Your cooktop should also be 24 to 36 inches from any hood or cabinets above it.
Weights and Dimensions

Specifications
Additional Documents
- Warranty Information (pdf)
- Installation & Assembly (pdf)
Features
| Display Screen | LED |
| Fuel Type | Electric |
| Color/Finish | Black |
| Primary Material | Ceramic |
| Product Care | Wipe Clean With a Dry Cloth |
| Total BTU Output | 10200 BTU |
| Control Location | Front |
| Control Type | Touch |
| Number of Controls | 4 |
| Installable Over Wall Oven | Yes |
| Cooktop Surface Structure | Smoothtop |
| Downdraft Exhaust | No |
| Power Display Indicator | Yes |
| Power Levels | 9 |
| Hot Surface Indicator | Yes |
| Automatic Pan Detection | Yes |
| Timer | Yes |
| Ignition Type | Electric |
| Safety Lock | Yes |
| Beveled | Yes |
| Amperage | 20 Amps |
| Minimum Circuit Breaker Amperage | 20 Amps |
| Voltage | 240 Volt |
| Installation Kit | Yes |
| Cooking Elements Included | Yes |
| Number of Elements | 2 |
| Center Front Element Watts | 1200 Watt |
| Center Rear Element Watts | 1800 Watt |
| Power Cord Included | No |
| Wattage | 3000 |
| Outdoor Use | No |
| Grill Included | No |
| Griddle Included | No |
| Supplier Intended and Approved Use | Residential Use |
| Plug-In | No |
| Hardware Finish | Metal |
| Weight Capacity | 15 lb. |
| Assembly | Installation Required |
| Warranty | Commercial Warranty: No |
| Product Warranty: Yes | |
| Warranty Length | 2 Years |
| Full or Limited Warranty | Limited |
| Warranty Details 2 | 2-year US-based limited manufacturer warranty |
| Warranty Details | Defects Only; Failure to follow recommended care will |
| void product warranty; Consumer misuse not covered; | |
| Parts Only; Inspection Required; Normal wear and tear | |
| not covered | |
| Part Number | EMPV-12REC10 |
