Empava 30 inch 4 Elements Black Induction Cooktop EMPV-30EC02
Features
- Hardwired- 3 copper wire cables from the home power supply, 220~240 Volts, 40 amps breaker
Other Dimensions
| Overall Height | 2.31'' (inches) |
| Overall Width | 30'' (inches) |
| Overall Depth | 21'' (inches) |
| Power Cord Length - End to End | 47'' (inches) |
| Cutout Height - Top to Bottom | 5'' (inches) |
| Cutout Depth - Front to Back | 19.31'' (inches) |
| Front Left Burner Diameter | 6'' (inches) |
| Back Right Burner Diameter | 11'' (inches) |
| Back Left Burner Diameter | 6'' (inches) |
| Front Right Burner Diameter | 9'' (inches) |
| Cutout Width - Side to Side | 28.75'' (inches) |
| Undercounter Thickness | 0.18'' (inches) |
| Overall Product Weight | 28 lb. (pounds) |
- Besides checking the product measurements, you should also:
- Walk the Delivery Path: Measure doorways, hallways, stairways, and areas where there may be a tight fit to ensure your appliance will fit.
- Check the Fuel Type: Check if your cooktop requires gas or electricity. Depending on the model, electric cooktops require a 30, 40, or 50-amp circuit.
- Measure the Cutout Space: Remove your existing cooktop and measure the cutout opening. Measure the cutout width from side to side, depth from front to back, and distance between the cutout and both the back wall and the front of the countertop.
- Additional Considerations; Keep in mind that your new cooktop will have a lip that will overlap the cutout by ½-1 inch. You should also subtract any space needed for gas lines, ventilation, or other manufacturer requirements beneath the cooktop. Your cooktop should also be 24 to 36 inches from any hood or cabinets above it.
Weights and Dimensions

Specifications
Additional Documents
- Owner ManualĀ (pdf)
- Warranty InformationĀ (pdf)
- DimensionsĀ (pdf)
Features
| Fuel Type | Induction |
| Color/Finish | Black |
| Primary Material | Ceramic |
| Total BTU Output | 30000 BTU |
| Control Location | Front |
| Control Type | Touch |
| Number of Controls | 4 |
| Installable Over Wall Oven | Yes |
| Cooktop Surface Structure | Smoothtop |
| Downdraft Exhaust | No |
| Power Display Indicator | Yes |
| Automatic Shutoff | Yes |
| Power Levels | 9 |
| Hot Surface Indicator | Yes |
| Automatic Pan Detection | Yes |
| Timer | Yes |
| Ignition Type | Electric |
| Safety Lock | Yes |
| Amperage | 40 Amps |
| Minimum Circuit Breaker Amperage | 40 Amps |
| Voltage | 240 Volt |

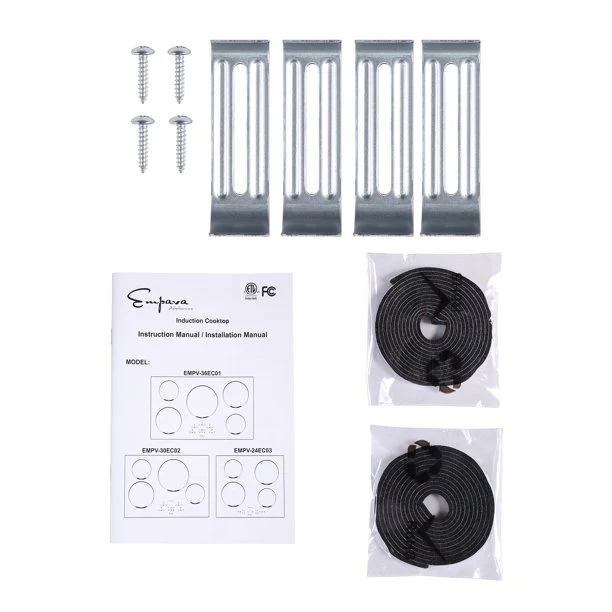

| Installation Kit | Yes |
| Cooking Elements Included | Yes |
| Number of Elements | 4 |
| Right Front Element Watts | 2100 Watt |
| Left Front Element Watts | 1500 Watt |
| Left Rear Element Watts | 3700 Watt |
| Right Rear Element Watts | 1500 Watt |
| Power Cord Included | Yes |
| Wattage | 8800 |
| Outdoor Use | No |
| Grill Included | No |
| Griddle Included | No |
| Supplier Intended and Approved Use | Residential Use |
| Plug-In | No |
| Digital Display | Yes |
| Display Screen | LED |
| Assembly | Installation Required |
| Warranty | Product Warranty |
| Commercial Warranty | No |
| Warranty Length | 2 Years |
| Full or Limited Warranty | Limited |
| Warranty Details | Defects Only; Failure to follow recommended care will void product warranty; Consumer misuse not covered; Parts Only; Inspection Required; Normal wear and tear not covered |
| Warranty Details 2 | With 2 years US based limited manufacturer warranty |
| Part Number | EMPV-30EC02 |
