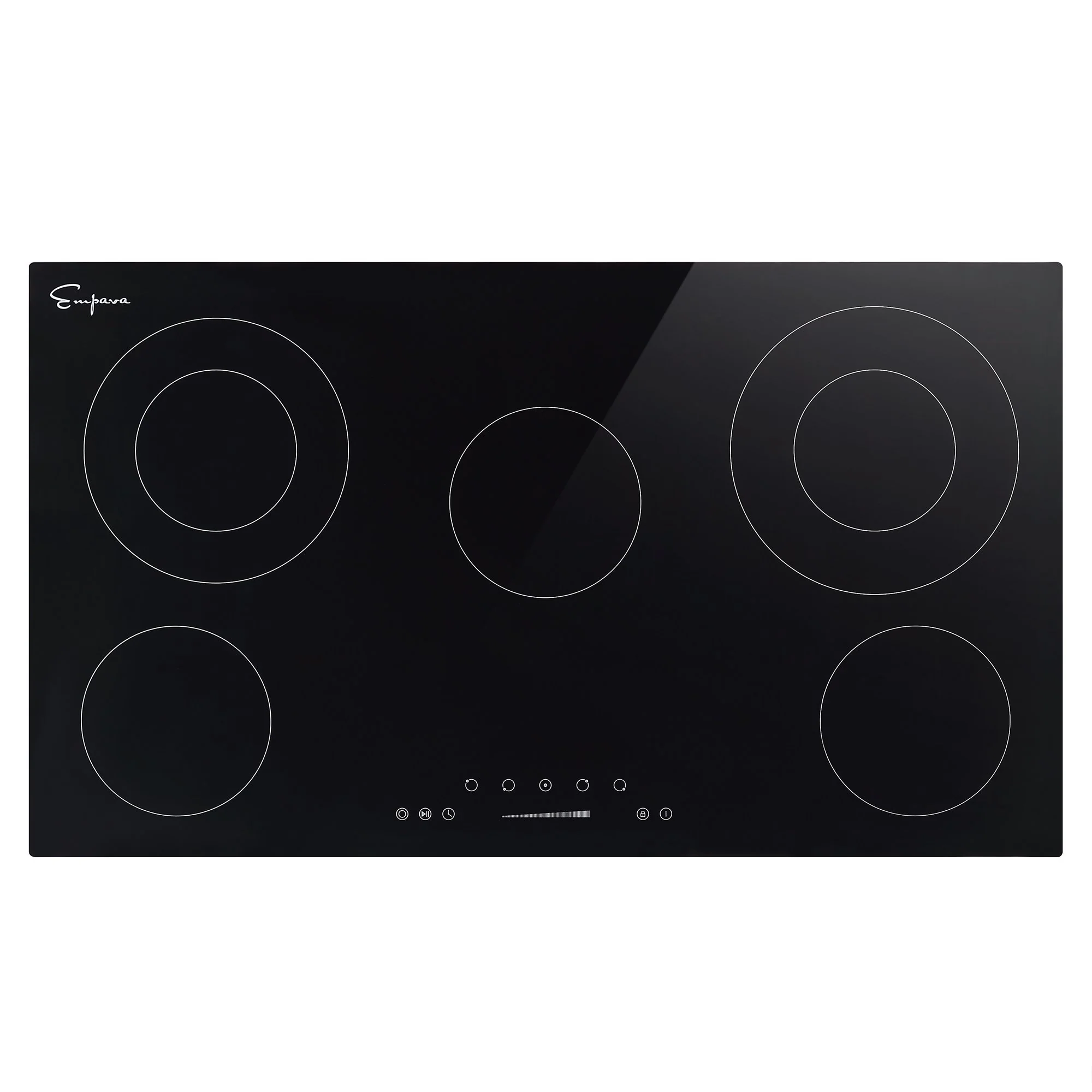

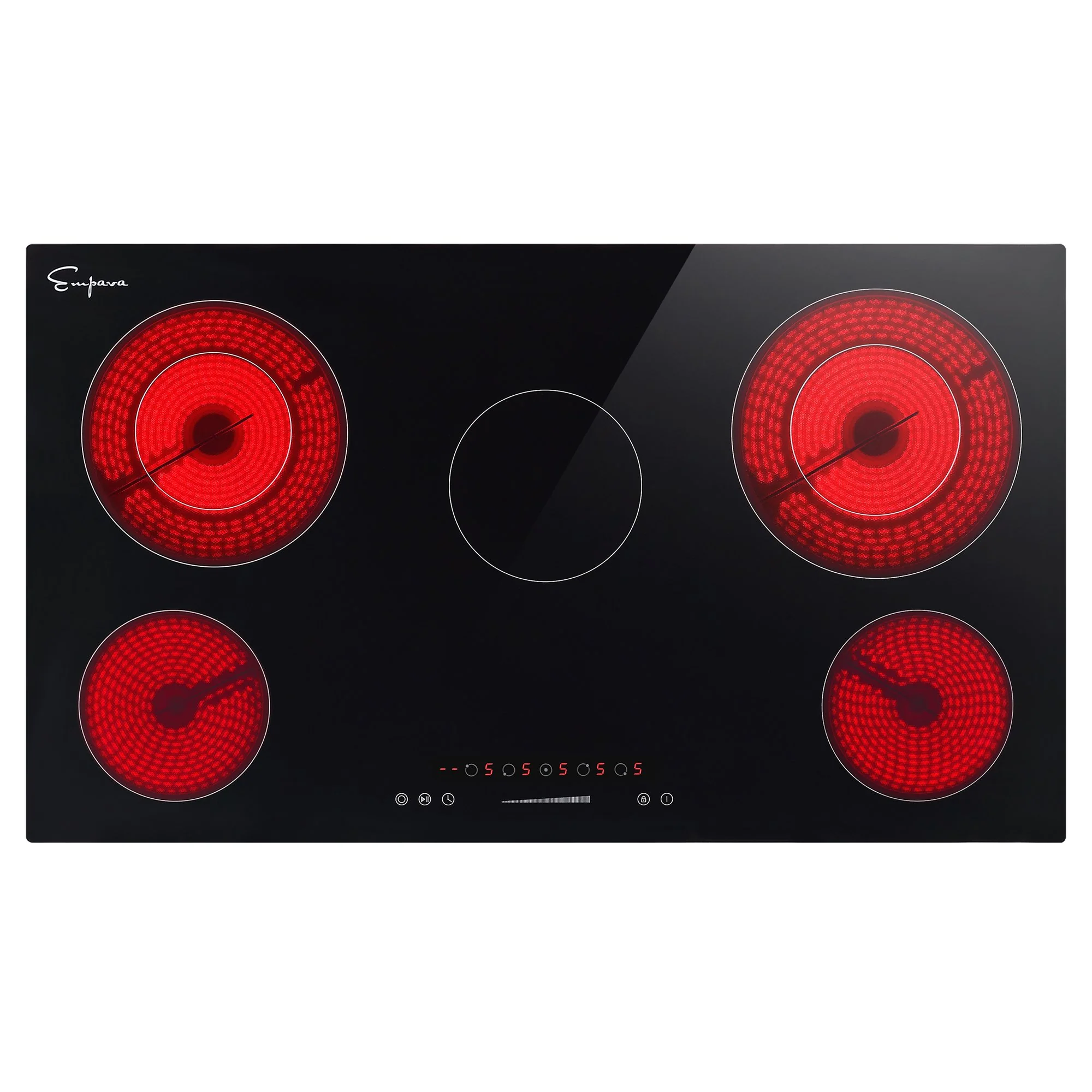

The 36-in-5 elements radiant electric cooktop with certification is a perfect combination of style and practicality. The sleek black finish and built-in design offer an attractive look for any counter. Including 5 heating elements (2x 6.5-inch 1200-W Element, 1x 6.5-inch 100-W Keep Warm Element, 1x 9.8-inch/5.5-inch 3000-W/1400-W Dual-Ring Element, 1x 9-inch/5.4-inch 2200-W/1100-W Dual-Ring Element) distribute even heat for simmer, boil, stir-frying, steaming, melting! A Red led display with a black glass surface helps achieve a modern look that complements the entire kitchen. The hot surface indicator will let you know when elements are hot. Sensitive digital control and 99 minutes timer will help you to cook perfectly and accurately. During the past years, Empava radiant electric cooktops have been a very popular choice for kitchen upgrades and new builds.

Features

• The USA and Canada ETL-certified radiant electric cooktop by Empava Appliances with a 2-year US-based manufacturer warranty
• Product dimension 35.43 in W x 20.47 in D x 2 in H, cutout dimensions 34.65 in W x 19.69 in D
• Hardwired- 3 copper wire cables from the home power supply, 220~240 Volts, 40 amps breaker
• 5 cooking zones include 6.5-inch 100-watt elements to keep that French toast, deep-fried food, and even mashed potatoes from turning cold
• 2x Dual-Ring elements - use different pan sizes on this powerful 2,200-watt and 3,000-watt flexible element that produces concentrated heat for rapid boiling
• Easy-to-clean Vitro ceramic smooth surface glass will provide you with a reliable cooktop for years to come
• Compatible with aluminum, cast iron, ceramic, copper, earthenware, porcelain, and stainless-steel cookware
• The keep-warm zone is a low-power (100-Watt) element. When it works, it is not turning red like other heating elements

Other Dimensions

Overall Height	2.05''
Overall Width	35.43''
Overall Depth	20.47''
Cutout Width - Side to Side	34.65''
Cutout Height - Top to Bottom	5''
Center Front Burner Diameter	6.5''
Back Left Burner Diameter	9.8''
Back Right Burner Diameter	9''
Overall Product Weight	35 lb.
Cutout Depth - Front to Back	19.69''
Front Left Burner Diameter	6.5''
Front Right Burner Diameter	6.5''

• Besides checking the product measurements, you should also:
• Walk the Delivery Path: Measure doorways, hallways, stairways, and areas where there may be a tight fit to ensure your appliance will fit.
• Check the Fuel Type: Check if your cooktop requires gas or electricity. Depending on the model, electric cooktops require a 30, 40, or 50-amp circuit.
• Measure the Cutout Space: Remove your existing cooktop and measure the cutout opening. Measure the cutout width from side to side, depth from front to back, and distance between the cutout and both the back wall and the front of the countertop.
• Additional Considerations; Keep in mind that your new cooktop will have a lip that will overlap the cutout by ½-1 inch. You should also subtract any space needed for gas lines, ventilation, or other manufacturer requirements beneath the cooktop. Your cooktop should also be 24 to 36 inches from any hood or cabinets above it.

Specifications

Additional Documents

• Owner Manual (pdf)
• EMPV-REC-Size.pdf (pdf)

Features

Display Screen	LED
Fuel Type	Electric
Color/Finish	Black
Primary Material	Ceramic
Product Care	Wipe Clean With a Dry Cloth
Total BTU Output	26200 BTU
Control Location	Front
Control Type	Touch
Number of Controls	5
Installable Over Wall Oven	Yes
Cooktop Surface Structure	Smoothtop
Downdraft Exhaust	No
Power Display Indicator	Yes
Power Levels	9
Hot Surface Indicator	Yes
Automatic Pan Detection	Yes
Timer	Yes
Ignition Type	Electric
Safety Lock	Yes
Beveled	Yes
Amperage	40 Amps
Minimum Circuit Breaker Amperage	40 Amps
Voltage	240 Volt

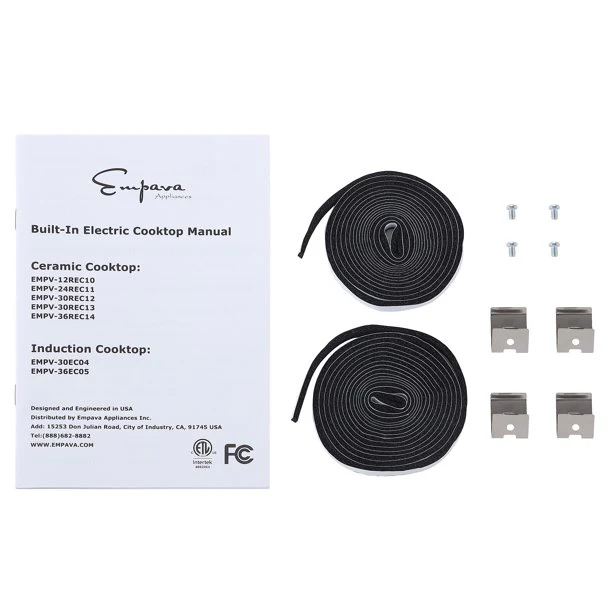

Installation Kit	Yes
Cooking Elements Included	Yes
Number of Elements	5
Right Front Element Watts	1200 Watt
Left Front Element Watts	1200 Watt
Left Rear Element Watts	2200 Watt
Right Rear Element Watts	3000 Watt
Center Front Element Watts	100 Watt
Power Cord Included	No
Wattage	7700
Outdoor Use	No
Grill Included	No
Griddle Included	No
Supplier Intended and Approved Use	Residential Use
Plug-In	No
Hardware Finish	Metal
Weight Capacity	35 lb.
Assembly	Installation Required
Warranty
Commercial Warranty	No
Product Warranty	Yes
Warranty Length	2 Years
Full or Limited Warranty	Limited
Warranty Details 2	2-years US based limited manufacturer warranty
Warranty Details	Defects Only; Failure to follow recommended care will void product warranty; Consumer misuse not covered; Parts Only; Inspection Required; Normal wear and tear not covered
Part Number	EMPV-36REC14
