The WM series offers a choice of two flame patterns, Amantii’s traditional diffused flame appearance and a new realistic flame style. The WM features the multi-color flame presentation and boasts a true clean face display unencumbered by unsightly heat vents.

Ambient canopy lighting illuminates decorative media adding another element of dimension.

The slim design allows for versatile applications, inside or outside, including semi-flush mount within 2 x 4 wall and the standardized sizing allows for hassle-free installation at any stage of your project.

Outdoor use: Please refer to Outdoor Installation Instructions.

Included Accessories

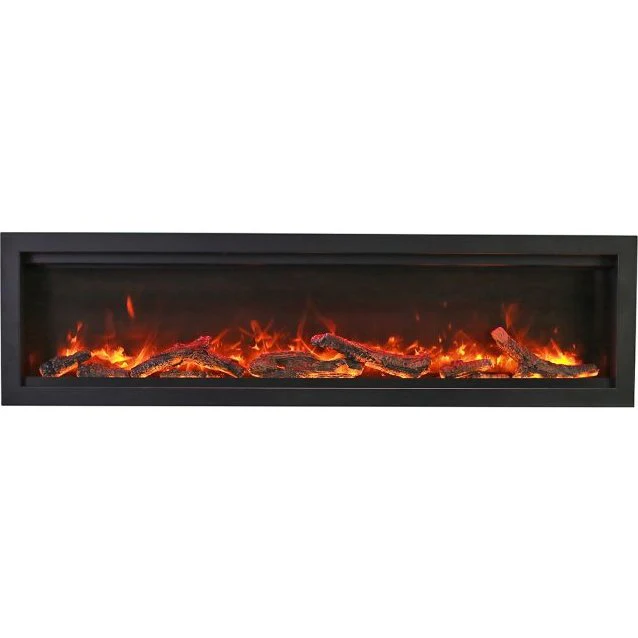

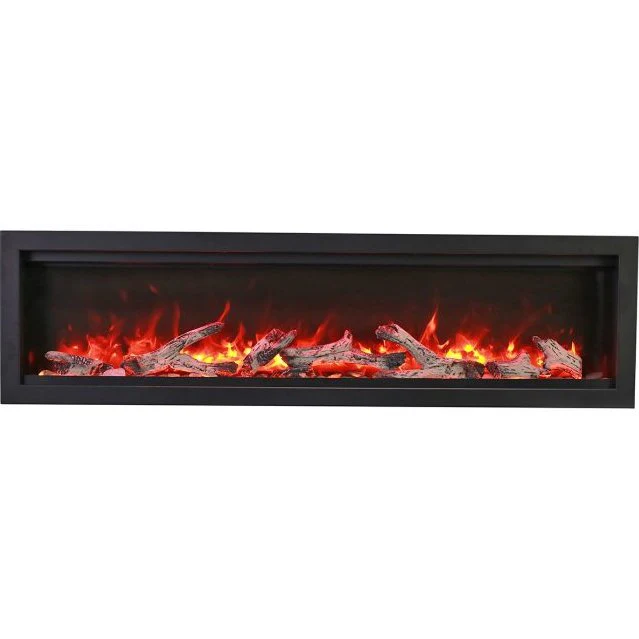

• The Remii WM electric fireplace series comes with a log set and clear decorative glass media.

Key Features:

• Install option: Can be fully recessed. | Can be semi-flush mounted* within a 2×4 wall. SYM-XS surround required
• Flame Styles: Two flame style patterns – standard and more traditional – you choose!
• Flame Presentation: Choose from combinations of yellow, orange colored flames

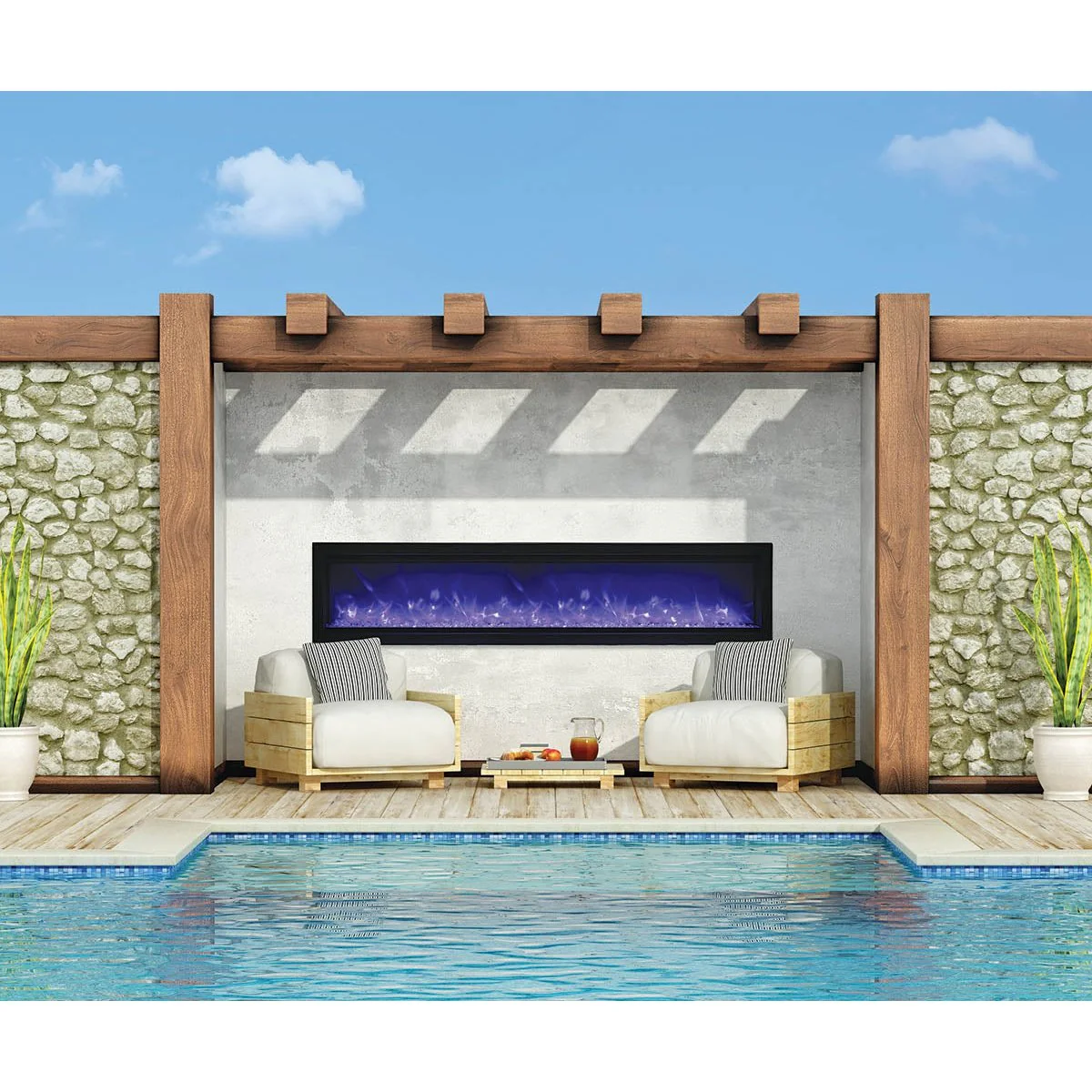

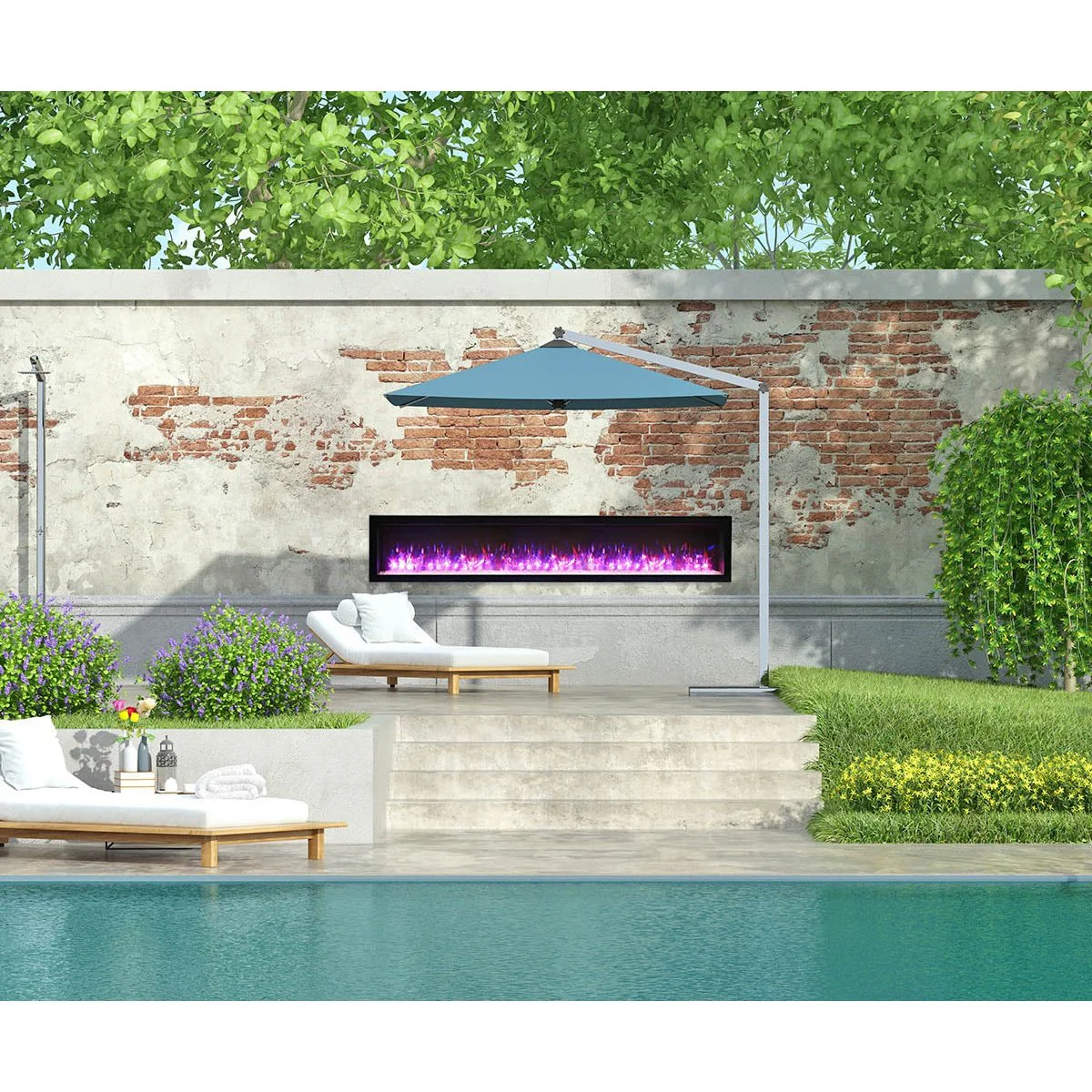

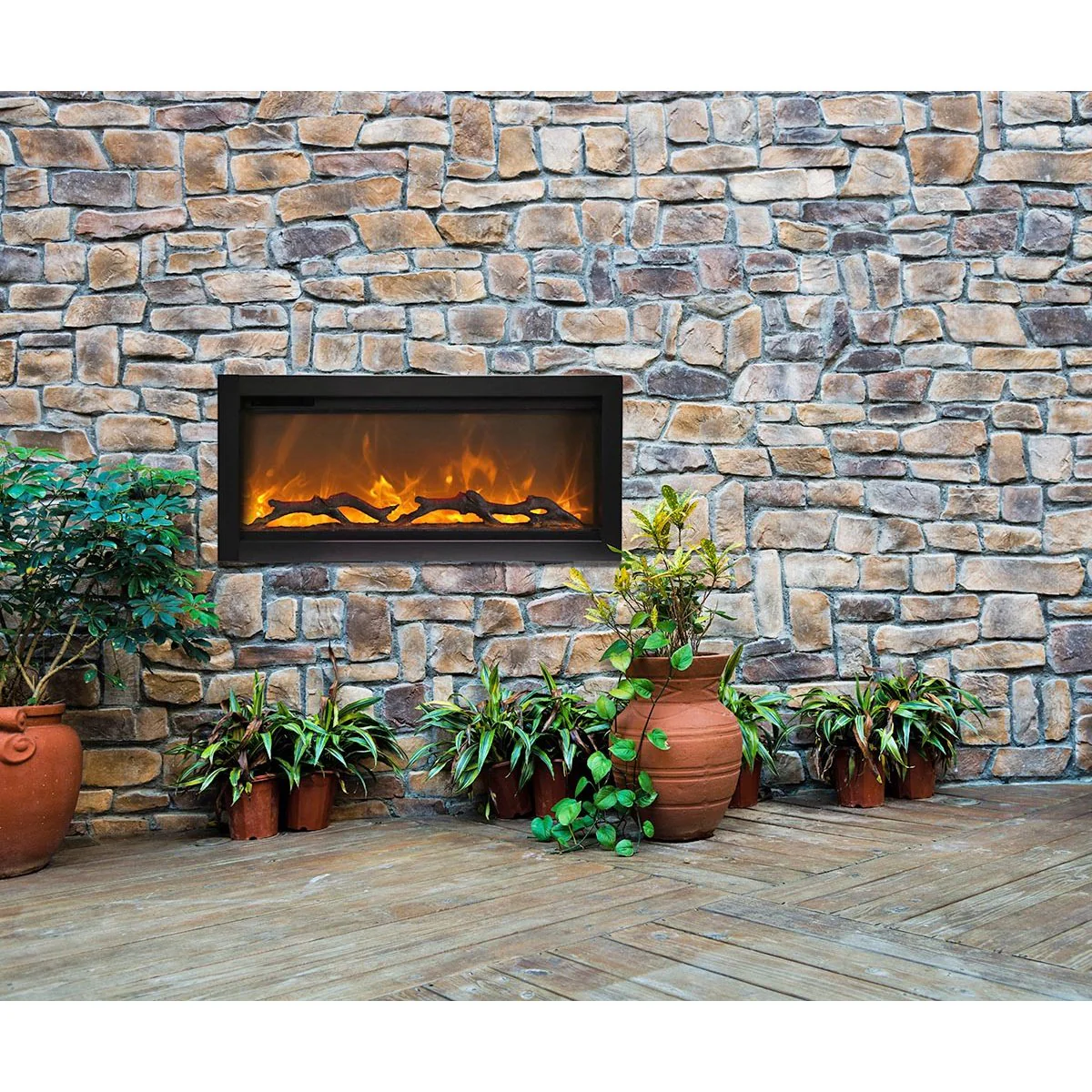

• Can be used indoor & outdoor: (Including bathrooms.) Refer to installation manual
• Heater & Fan: Flame operates with or without heat. Perfect for zone heating
• Ambient Canopy Lighting: Choose from 13 colors of light to illuminate decorative media from above.
• Touch Pad: For convenient control of features with temperature display

Product Information

Product Features

• Ambient Canopy lighting in 13 colors to illuminate decorate media – adds new dimension
• Approx. heating area 400-500 sq. ft.
• 2 Stage heater
• Hard wire ready
• Thermostat hard wire ready
• Flame can operate without heat
• Single remote control for flame, ambient canopy lighting & heater included
• Heater is located on the inside top of the fireplace unit allowing the heat to cascade down over the glass
• Hidden venting allows for a true clean face appearance
• Trim is required and fireplace units come with Black Surround.
• Optional decorative trims are available for WM-50, WM-60 and WM-74 Models.

Product Specifications

34"

34-WM
Volts	120V AC 60Hz
Amps	1465
Watts	1465 max
Heater	1200 watts high 600 watts low
No Heater	26 watts
Motor Heater	19 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 34 x 5 1/2” 39.6 x 86.3 x 14.3 cm
Glass View Opening	13 1/8 x 32 1/2″ 33.2 x 82.3 cm
Surround Size	16 7/8 x 36 1/4″ 42.8 x 92.1 cm
Shipping Size	19 1/2 x 41 1/4 x 9 1/4″ 49.3 x 104.6 x 23 cm
Shipping Weight	57.3 lbs or 26 kgs
Plug Location	Left Side
Cord Length	76″
Approx. Heating Area	400 sq. ft. / 37 sqm

42"

42-WM
Volts	120V AC 60Hz
Amps	12.5
Watts	1465
Heater	1465 watts high 600 watts low
No Heater	31 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 42 1/4 x 5 1/2” 39.6 x 107.2 x 14 cm
Glass View Opening	13 1/8 x 40 3/8″ 33.2 x 102.7 cm
Surround Size	16  7/8 x 44 1/4″ 42.8 x 112.5 cm
Shipping Size	19 1/2 x 49 1/4 x 9 1/4″ 49.3 x 124.8 x 23 cm
Shipping Weight	68.34 lbs or 31 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm

50"

50-WM
Volts	120V AC 60Hz
Amps	12.5
Watts	1465
Heater	1465 watts high 600 watts low
No Heater	33 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 50 1/4 x 5 1/2” 39.6 x 127.6 x 14 cm
Glass View Opening	13 1/8 x 48 1/2″ 33.2 x 123.1 cm
Surround Size	16  7/8 x 52 1/4″ 42.8 x 132.7 cm
Shipping Size	19 1/2 x 57 1/4 x 9 1/4″ 49.3 x 145.2 x 23 cm
Shipping Weight	79.8 lbs or 36.2 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm

60"

60-WM
Volts	120V AC 60Hz
Amps	12.5
Watts	1465
Heater	1465 watts high 600 watts low
No Heater	35 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 60 1/4 x 5 1/2” 39.6 x 153 x 14 cm
Glass View Opening	13 1/8 x 58 3/8″ 33.2 x 148.4 cm
Surround Size	16  7/8 x 62 1/4″ 42.8 x 158.2 cm
Shipping Size	19 1/2 x 67 1/4 x 9 1/4″ 49.3 x 170.6 x 23 cm
Shipping Weight	92.6 lbs or 42 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm

 74"

74-WM
Volts	120V AC 60Hz
Amps	12.5
Watts	1465
Heater	1465 watts high 600 watts low
No Heater	36 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 74 1/4 x 5 1/2” 39.6 x 188.5 x 14 cm
Glass View Opening	13 1/8 x 72 3/8″ 33.2 x 184 cm
Surround Size	16  7/8 x 76 1/4″ 42.8 x 193.8 cm
Shipping Size	19 1/2 x 81 1/4 x 9 1/4″ 49.3 x 206.2 x 23 cm
Shipping Weight	108 lbs or 49 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm

 88"

88-WM
Volts	120
Amps	12.5
Watts	1465 max
Heater	1465 watts high 600 watts low
No Heater	38 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 88 1/4 x 5 1/2” 39.6 x 224.1 x 14 cm
Glass View Opening	13 1/8 x 86 3/8″ 33.2 x 219.5 cm
Surround Size	16  7/8 x 90 1/4″ 42.8 x 229.3 cm
Shipping Size	19 1/2 x 95 1/2 x 9 1/4″ 49.3 x 242 x 23 cm
Shipping Weight	123 lbs or 56 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm

 100"

100-WM
Volts	120
Amps	12.5
Watts	1465 max
Heater	1465 watts high 600 watts low
No Heater	39 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	15/5/8 x 100 1/4 x 5 1/2” 39.6 x 254.6 x 14 cm
Glass View Opening	13 1/8 x 98 3/8″ 33.2 x 250 cm
Surround Size	16  7/8 x 102 1/4″ 42.8 x 259.8 cm
Shipping Size	19 1/2 x 107 1/4 x 9 1/4″ 49.3 x 272.2 x 23 cm
Shipping Weight	136.68 lbs or 62 kgs
Plug Location	Left Side
Cord Length	76″ or 180 cm
Approx. Heating Area	400 sq. ft. / 37 sqm



• The slim design allows for versatile applications including semi-flush mount within 2 x 4 walls.

For Semi-Flush Mount Installation

For rooms where space may be at a premium, WM series models can also be partially recessed within a 2 x 4 wall. The unit will sit 2” outside of the wall with 4” of the unit mounted inside.

• This install option requires the Semi-Flush Mount Surround to finish the look of the fireplace.
• The Semi-Flush Mount Surround has a black finish and has a depth of 2 1/4”
• The Semi-Flush Mount Surround must be purchased separately. Ships in a separate box.
• This application is only applicable to the WM models.

Hassle-Free Installation – Standardized Sizing

• The WM fireplaces have been made with standardized unit sizing. Standardized fireplace sizing creates hassle-free installation at any stage of the project. This means that the opening for the fireplace can be made at any stage of a build – the appliance can be easily installed and finished with the included surround at the end of a project. The surround beautifully completes the fireplace without the need for detailed or costly finishing.

Clean Face

• NO UNSIGHTLY VENTING – Unlike electric fireplace models made by other manufacturers, WM fireplaces are unencumbered by unsightly venting or red glowing heat grills. Venting and grills take away from the aesthetics of a fireplace and the WM series has some of the biggest glass viewing areas in the industry. You’ll see more of what is important – a beautiful, warm and comforting flame display.

Hidden venting and no grills.

• The heater is located at the top of the WM-34 fireplace allowing heat to cascade down in front of the glass.
